Pump Specifications
Height 318 mm (12 & 1/2")
Width 217 mm (8/9 & 16")
Depth 203 mm (8")
Est. Ship Weight 16.33 kg (36 lbs)
Air Inlet 18 NPTF (1/4")
Inlet 25 mm (1") BSP
Outlet 25 mm (1") BSP
Displacement/Stroke 0.6 L (0.16 gal.)
Max. Outlet Pressure 20 - 120 psi (1 - 8.3 bar)

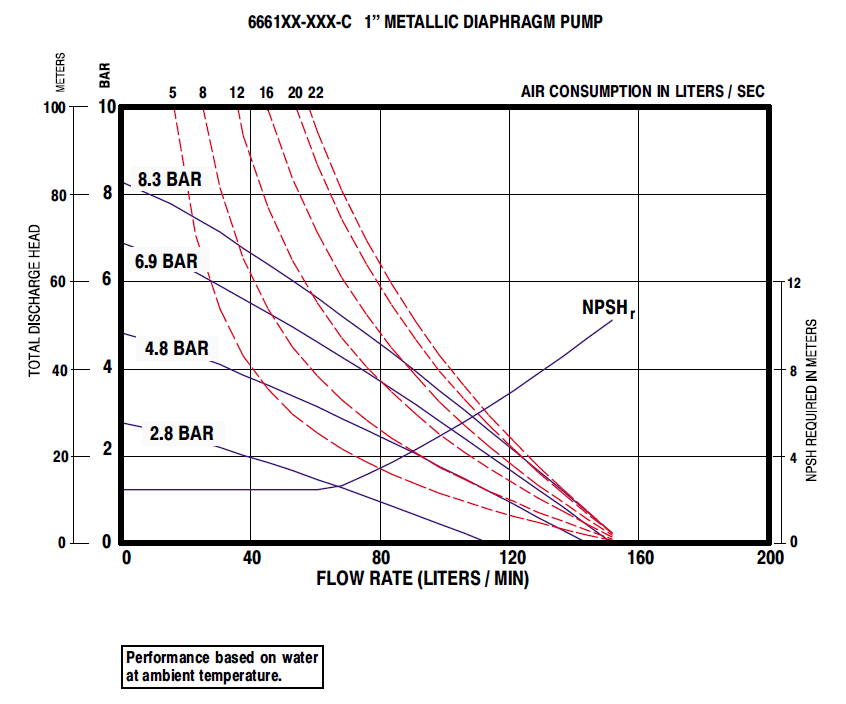

Max. Flow Rate (Flooded) 133 lpm (35 gpm)
Max. Size Solids 3.2 mm (1/8")

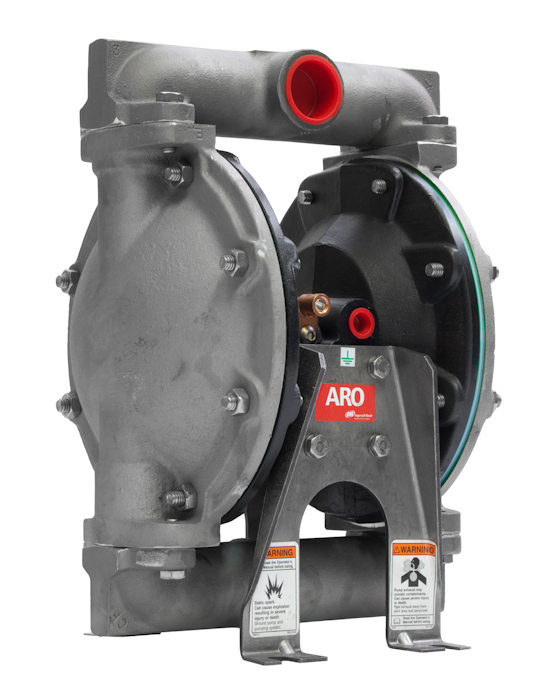

Fully stainless steel, chemically resistant pumps for the movement of hazardous and harmful material. These pumps are solidly constructed with over sized 316 manifolds for maximum fluid security.
Design Features
- Designed with TOUGHNESS in mind
- Ideal for transfer of chemicals, hazardous waste,

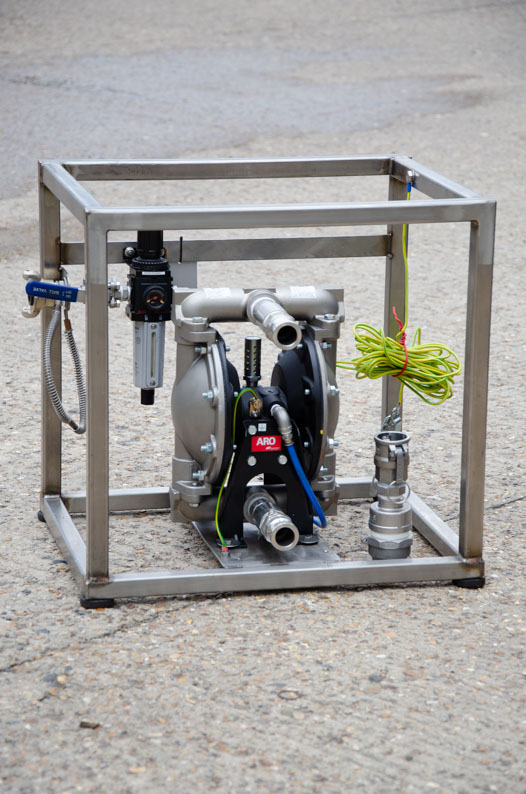

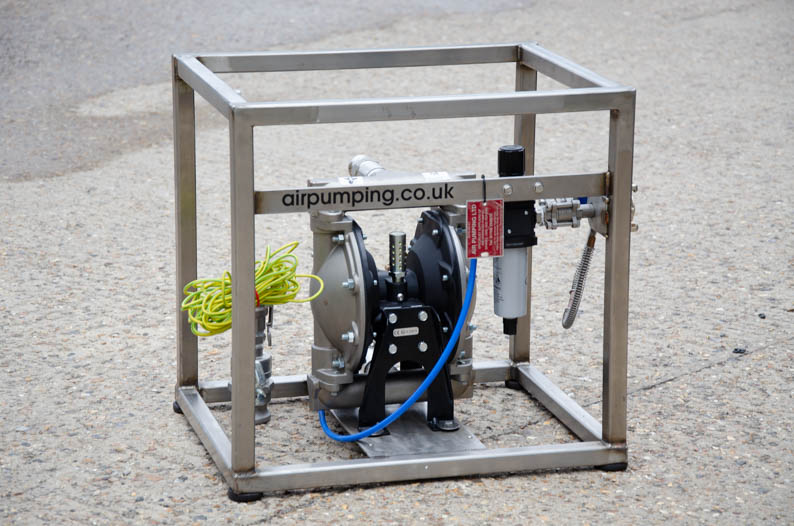

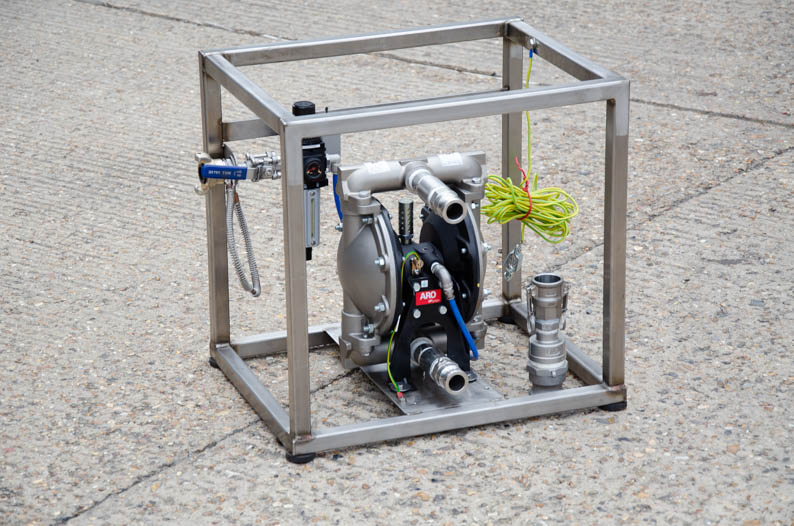

- Move pump from location to location with its compact, rugged design
- Easy access to ball checks and fluid caps for maintenance and repairs
Performance Specifics
- Lube-free operation
- Max. flow rate is 133 lpm (35 gpm)
- Max. air pressure is 8.3 bar (120 psig)
- Max. solid passing is 3.2mm (1/8")
- Fully stainless constuction
