Pump Specifications
Height 505 mm (19 & 7/8")
Width 333 mm (13 & 1/8")
Depth 292 mm (11 & 1/2")
Est. Ship Weight 39.6 kg (87.3 lbs)
Air Inlet 14 NPTF (1/2")
Inlet 50.8 mm (2") BSP
Outlet 50.8 mm (2") BSP
Temperature Limits 40° to 225° F (4° to 107°c)
Max. Outlet Pressure 20 - 120 psi (1 - 8.3 bar)
Max. Flow Rate (Flooded) 511 lpm (135 gpm)
Max. Size Solids 6.4 mm (1/4")

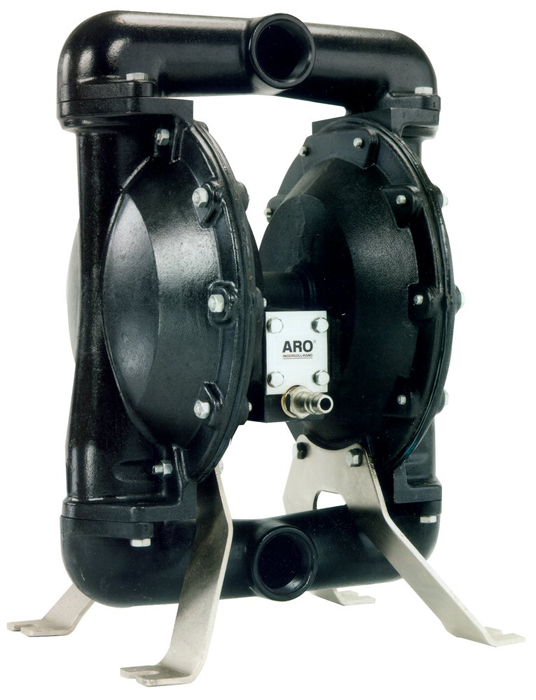

Fully stainless steel, chemically resistant pumps for the movement of hazardous and harmful material. These pumps are solidly constructed with over sized 316 manifolds for maximum fluid security.
Design Features
- Designed with TOUGHNESS in mind
- Ideal for transfer of chemicals, hazardous waste,
- Move pump from location to location with its compact, rugged design
- Easy access to ball checks and fluid caps for maintenance and repairs
Performance Specifics
- Lube-free operation
- Max. flow rate is 511 lpm (135 gpm)
- Max. air pressure is 8.3 bar (120 psig)
- Max. solid passing is 6.4mm (1/4")
- Fully stainless constuction
