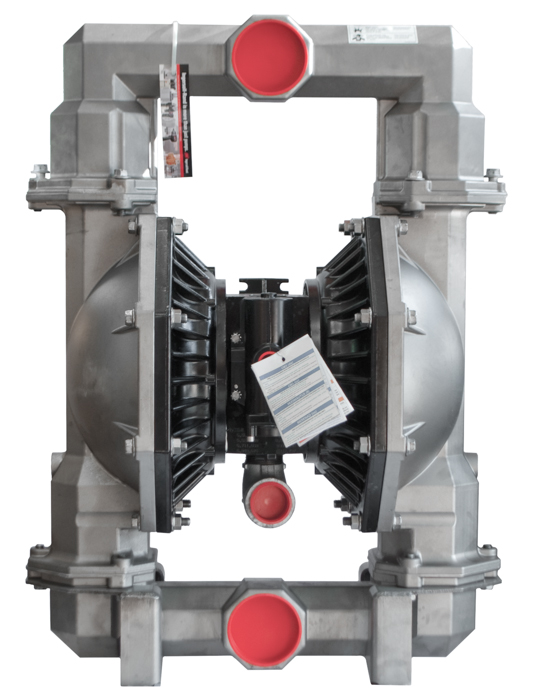

3" ATEX Fuel Transfer Pump - Stainless / Viton

Pump Specifications
Height 812.8 mm (32")
Width 587.3 mm (23.2")
Depth 449.2 mm (17.6")
Est. Ship Weight 129.5 lbs (58.8 kgs)
Air Inlet 19 mm (3/4")
Inlet 76 mm (3")
Outlet 76 mm (3")
Displacement/Stroke 10.6 L (2.8 gal.)
Max. Flow Rate 897 lpm (237 gpm)
Max. Flow Rate (Flooded) 1041 lpm (275 gpm)
Max. Size Solids 9.5 mm (3/8")
Atex 94/9/EC
Trolley Mounted
Price on application

ARO's process grade Expert Series Diaphragm pumps feature the best ownership of any diaphragm pump on the market. A favorite among process professionals, the EXP Pump family provides optimum energy efficiency and downtime solutions. With flow rates up to 275 GPM (1041 LPM) ARO has the right pump for your application.

Design Features

  • The Ultimate in heavy duty pump design!!
  • ARO's patented "Unbalanced" air valve ensures no-stall operation
  • Bolted construction for no leak pumping
  • BSP / NPT inlets and outlets for ease of connection
  • EXP convoluted long lasting diaphragm design

Performance Specifics

  • Lube-free operation
  • Max. flow rate is 1041 lpm (275 gpm)
  • Max. air pressure is 8.6 bar (125 psig)
  • Max. solid passing is 9.5mm (3/4")
Product Name: 3" ATEX Fuel Transfer Pump - Stainless / Viton
