Pump Specifications
Height 812.8 mm (32")
Width 587.3 mm (23.2")
Depth 449.2 mm (17.6")
Est. Ship Weight 129.5 lbs (58.8 kgs)
Air Inlet 19 mm (3/4")
Inlet 76 mm (3")
Outlet 76 mm (3")
Displacement/Stroke 10.6 L (2.8 gal.)
Max. Flow Rate 897 lpm (237 gpm)
Max. Flow Rate (Flooded) 1041 lpm (275 gpm)
Max. Size Solids 9.5 mm (3/8")

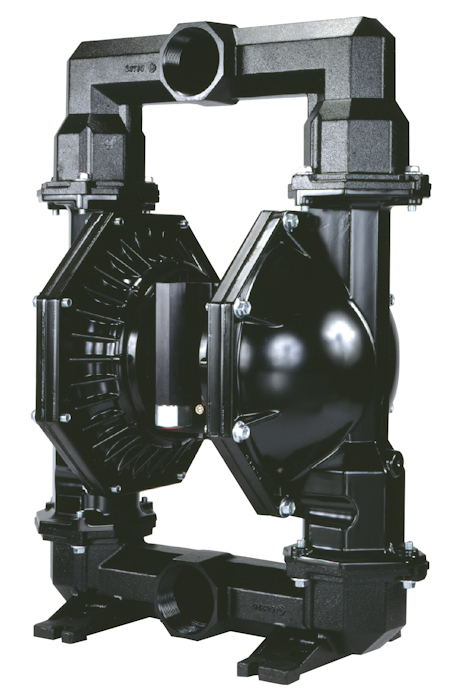

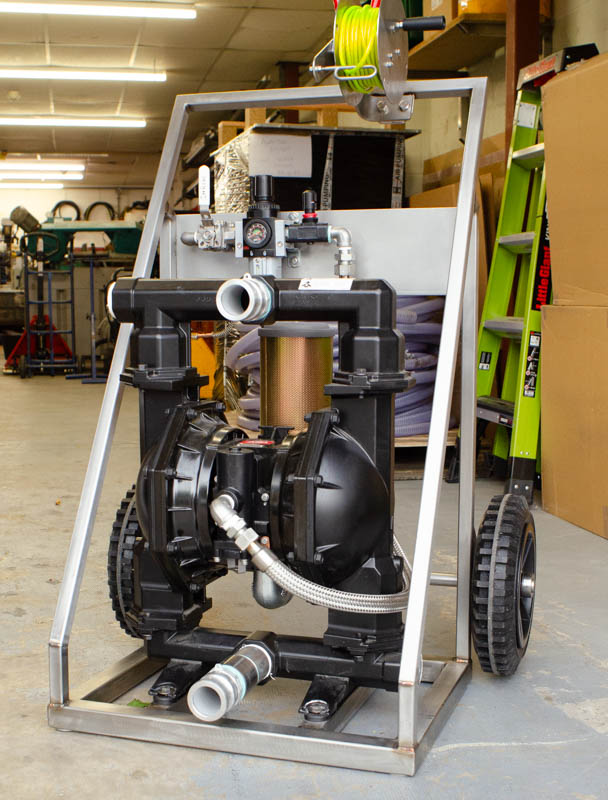

The largest diaphragm pump on our hire fleet, these three inch beasts can move a whopping 275 gallons per minute. This unit can handle any task thrown at it, and will clear a full IBC tank in under a minute at full steam. If you need a task done quickly, then this is your pump.
Design Features
- The Ultimate in heavy duty pump design!!
- ARO's patented "Unbalanced" air valve ensures no-stall operation
- Bolted construction for no leak pumping
- BSP / NPT inlets and outlets for ease of connection
- EXP convoluted long lasting diaphragm design
Performance Specifics
- Lube-free operation
- Max. flow rate is 1041 lpm (275 gpm)
- Max. air pressure is 8.6 bar (125 psig)
- Max. solid passing is 9.5mm (3/4")
